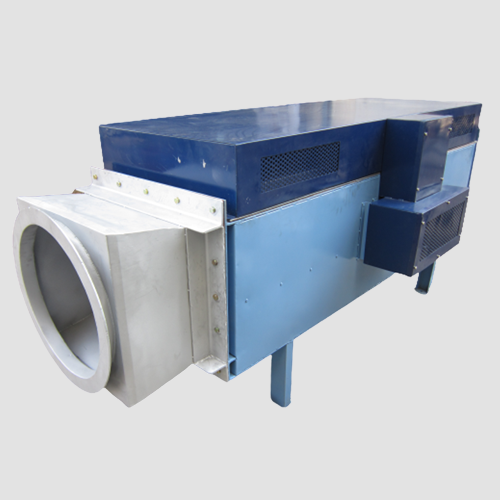

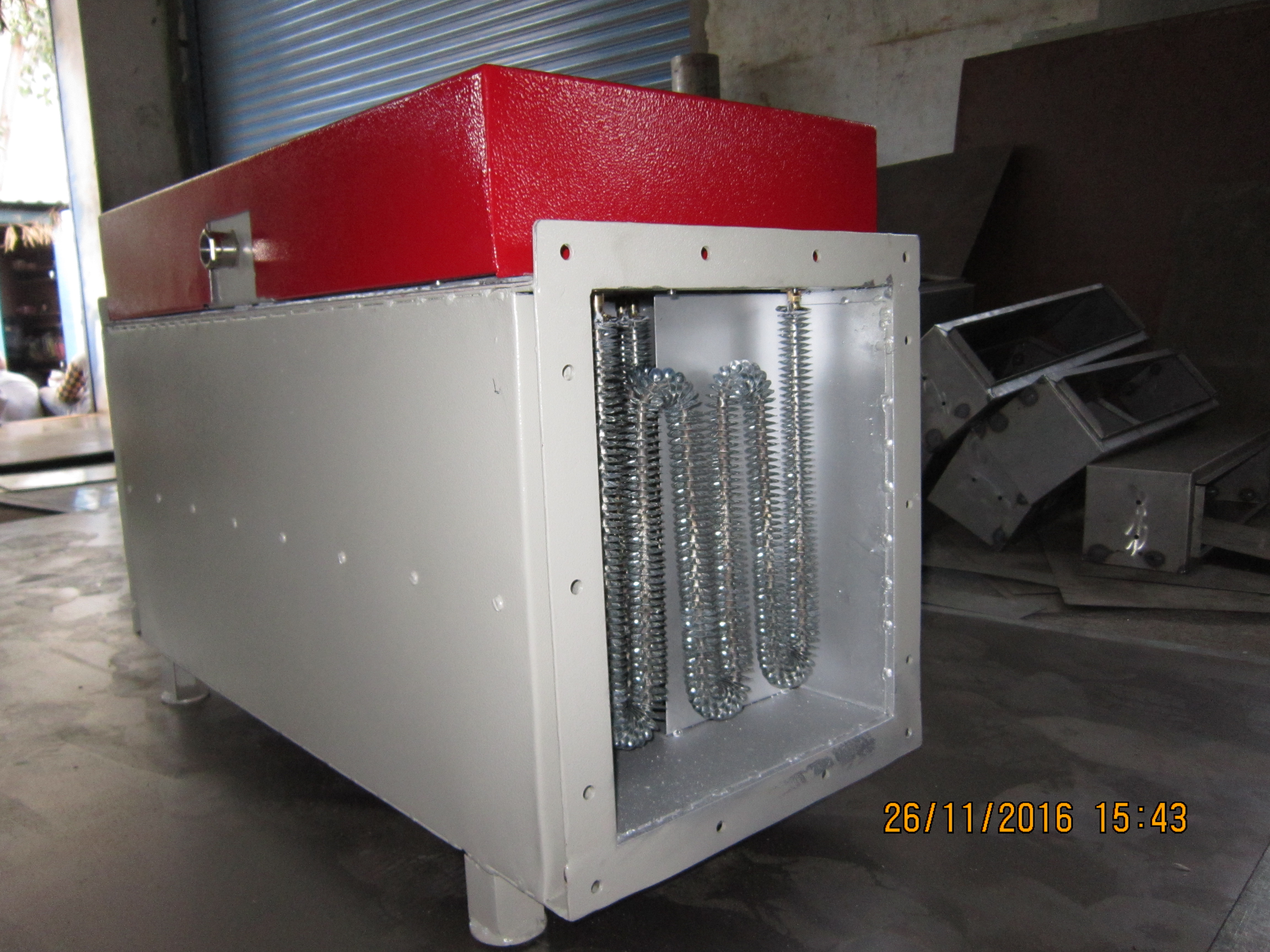

HIGH TEMPERATURE HOT AIR GENERATORS In this type of HAG, Bare Wire heating elements are made to pass through numerous channels of high temperature ceramic formers and electrically and thermally insulated from each upto required extent. fresh and dust-free air is then forced through these high temperature premium grade alloy element that can with stand bare Element alloy skin temperatures upto 8000C.
This Construction is used in these type of hot air generator. A method of heating dry air which reduces the start-up time of the heater considerably (working temperature is reached in a few seconds) and allows high temperatures to be achieved from a small areas and applications requiring low CFM with high temperatures Supplied with or without a suitable blower, these Hot Air Generators reliably produces the desired result. They can be used in Single throw systems and Recirculation Systems. Temperatures upto 3500C can be achieved in single throw models using these Hot Air Generators.
SPACE HEATING
COMFORT HEATERS
Our Space
Heating Solutions include a wide array of Designs manufactured to suite Special
applications &ProcessesCorrosion Resistant Wall or Ceiling Mounted
Horizontal Unit Heater
DESCRIPTION
This heater is
an ideal heat source for freezeprotection or comfort heat by Ideal Fan Forced
Heating in Industrial & Commercial Applications.
GENERAL SPECIFICATIONS
Ø
5
KW, 7.5 KW & 9 KW
Ø
240
VAC
Ø
Built-In
Thermostatic Controls ( Extra Safety)
Ø
Digital
Temperature Controls
Ø
No
Venting Necessary
Ø
Wall
or Ceiling Mounted
FEATURES:
Ø
Tubular
Finned Heaters for Long life & Efficiency
Ø
No
external contactors are necessary
Ø
18
Gauge 304 Stainless Steel Fabricated& WeldedConstruction
Ø
Self-Contained
Thermostat
Ø
Selector
switch Heater On / Off & Fan Only Operation
Ø
Dynamically
Balanced Fan Provides OptimumAir Flow across the Heating Elements
Ø
The
Cealing Bracket allows for direct
mounting of the heater to the Ceiling or Wall
Ø
Rating
240 Volts / 5 KW, 7.5 KWNo of Circuits : 1
Ø
1/8
HP Fan, 1000 RPM, 440 CFM & other
APPLICATIONS:
Ø
Shipping
and Receiving Areas
Ø
Primary
& Supplementary Heating
Ø
Dual
System Heaters & Spot Heating
Ø
Entryway
Air Curtain Heating
Provides Heating for: Pump
Houses, Power Generating Stations, Aircraft Hangers, Factories, Garages &
Warehouses
These units aredesigned with Advanced and Newly Developed Materials to Ensure High efficiency especially in Hot Air Generation for single Flow Systems. They are Compact and Designed for long Service Life. Used in Hot Air generation for Numerous Industrial Applications like

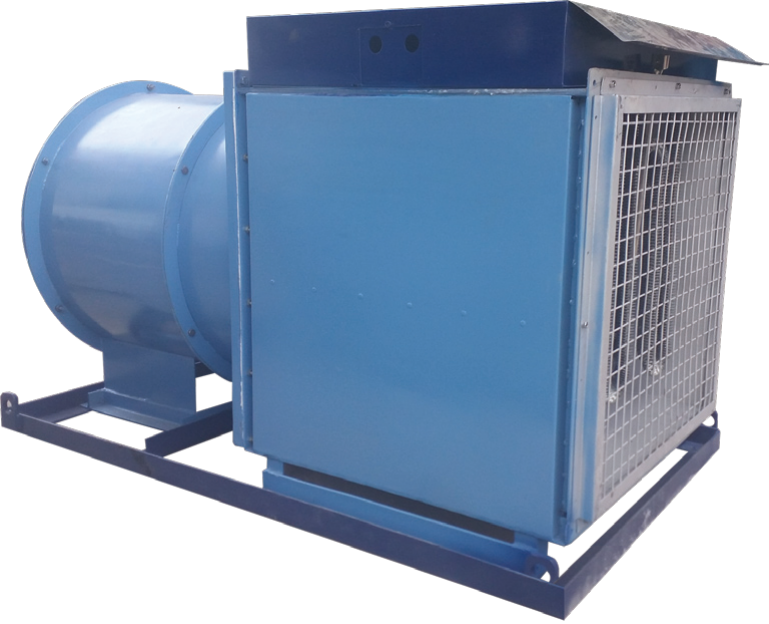

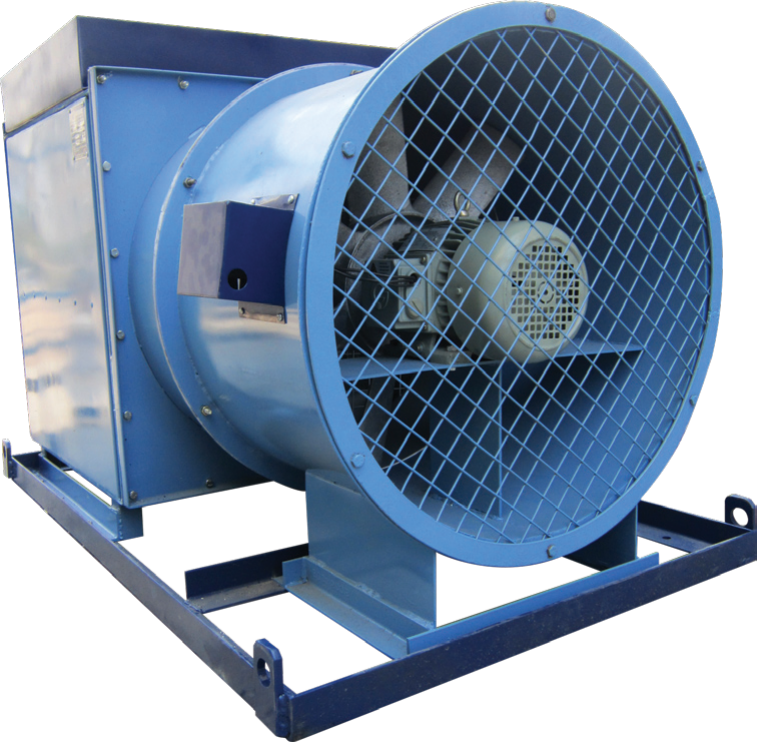

These Unit Heaters range from 2.5 KW through 50 KW. Fabricated from heavy gauge steel, Finned Heating Elements, enclosed fan motor. Suitable for ceiling or wall type upto 9 KW mounting for horizontal or vertical down airflow.
1. Heavy Duty Construction – Cabinets are made of heavy gauge steel for durability and trouble - free operation.
2. Supply Connection – Single connection eliminates separate fan motor circuit.
3. Motor – Fan motors have built - in automatic reset thermal overload protection. Motor is ventilated with unheated air.
4. Service Compartment – Hinged service door allows easy access to line terminals, fuses, contactors and transformers.
5. Fail safe Thermostat – adjustable built-in Thermostat for fail safe control
6. Mounting – Wall or ceiling mounting applicable to models up to 7 KW There after floor mounted or wheeled models are available.
7. Plate Fin Elements – SS Tubular Elements with finns for high surface area and heat dissipation. An automatic reset, thermal cutout protects the heater elements.
