MATRUSREE offers you the most complete selection of quality built heaters extending from basic products for liquid immersion heating to highly engineered process circulating heating systems including power and temperature control instrumentation. A variety of designs and large selection of standard physical sizes, watt densities & electrical ratings are available. Electric Process heaters are the most efficient methods for heating water, light to heavy oils, heat transfer fluids,air and other gases and for generating super heated steam.
INDUSTRIAL IMMERSION HEATERS

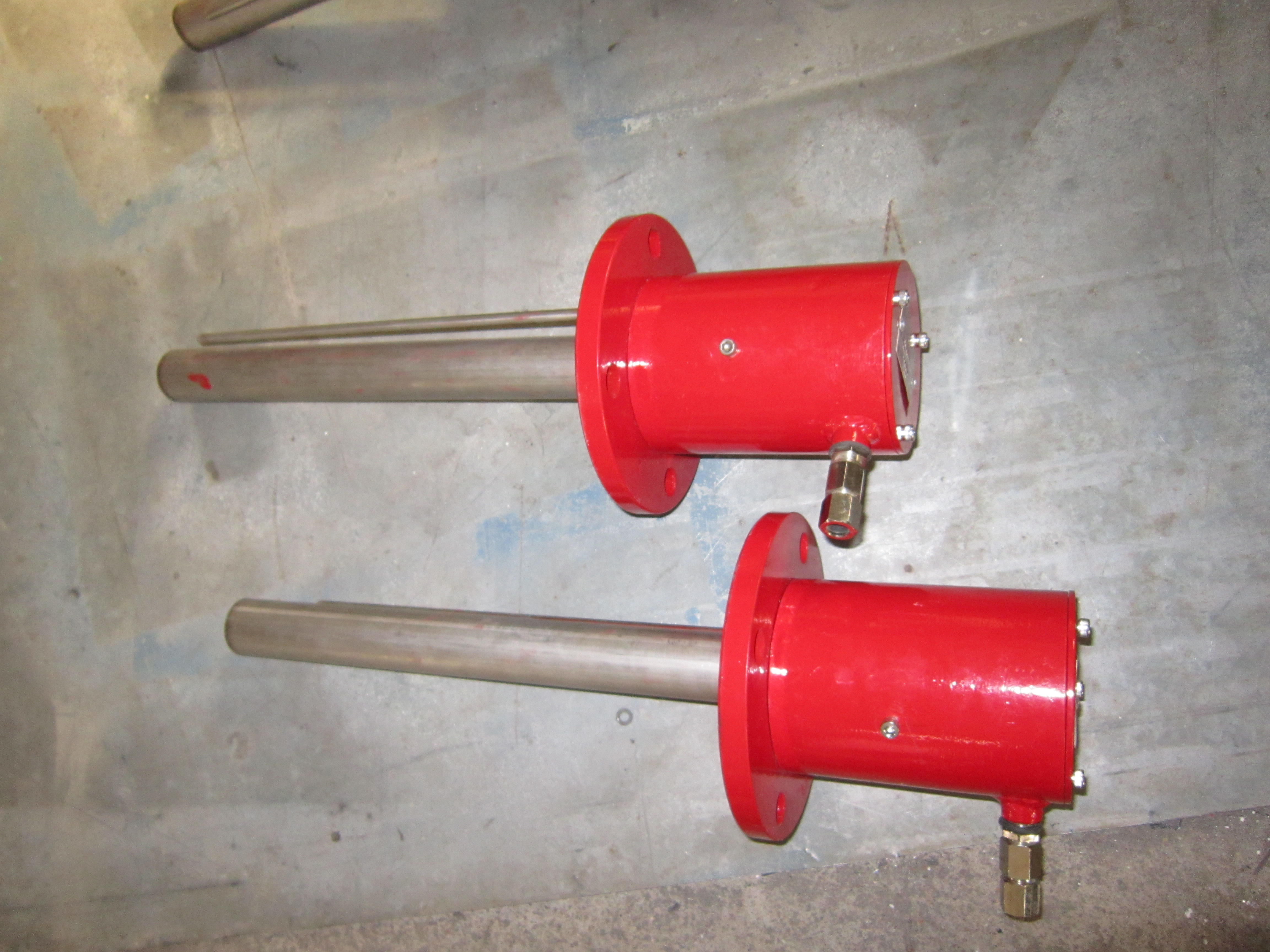

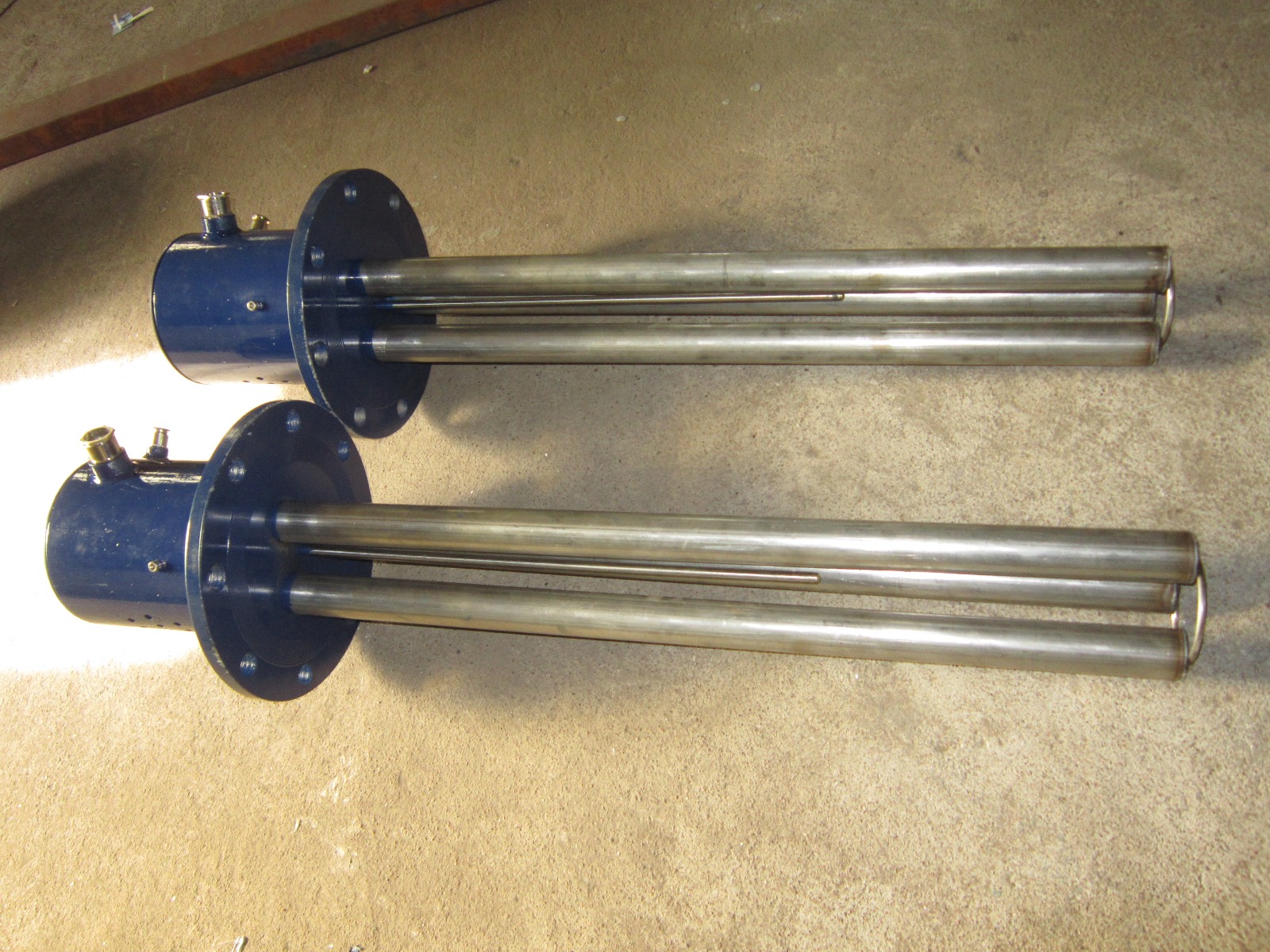

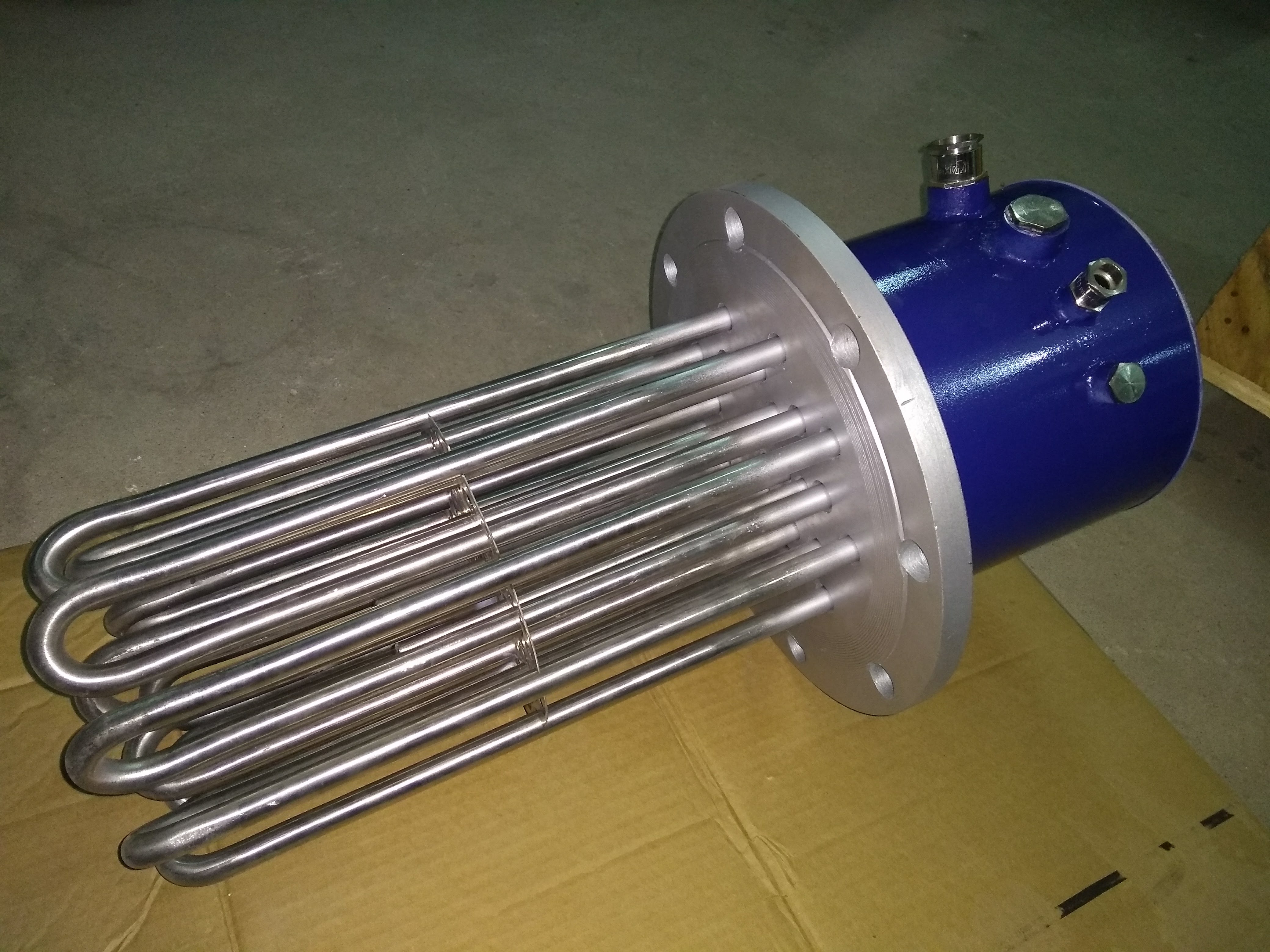

FLANGED IMMERSION HEATERS
SPECIFICATIONS
|
Watts |
upto 200 Kilowatts |
|
Volts/Phase |
upto 600 Volts, Single or 3 Phase |
|
Flange Size |
upto 24” ANSI and Custom Sizes |
|
Flange Material |
Carbon Steel and Stainless Steel |
|
Pressure Rating |
upto 40 Kg/Cm2 |
|
Immersion Length |
upto 120” (3 meter) |
THREADED FLANGE IMMERSION HEATERS
SPECIFICATIONS
|
Watts |
upto
25 Kilowatts in Single Flange |
|
Volts/Phase |
upto
600 Volts, Single or 3 Phase |
|
Flange
Size |
1”,
1.25“, 1.5”, 2“, 2.5” & 3” BSP & NPT Flange |
|
Flange
Material |
Brass,,
Cast Iron & Stainless Steel Pressure |
|
Pressure
Rating |
upto
40 Kg/Cm2 |
|
Immersion
Length |
upto
120” (3 meter) |

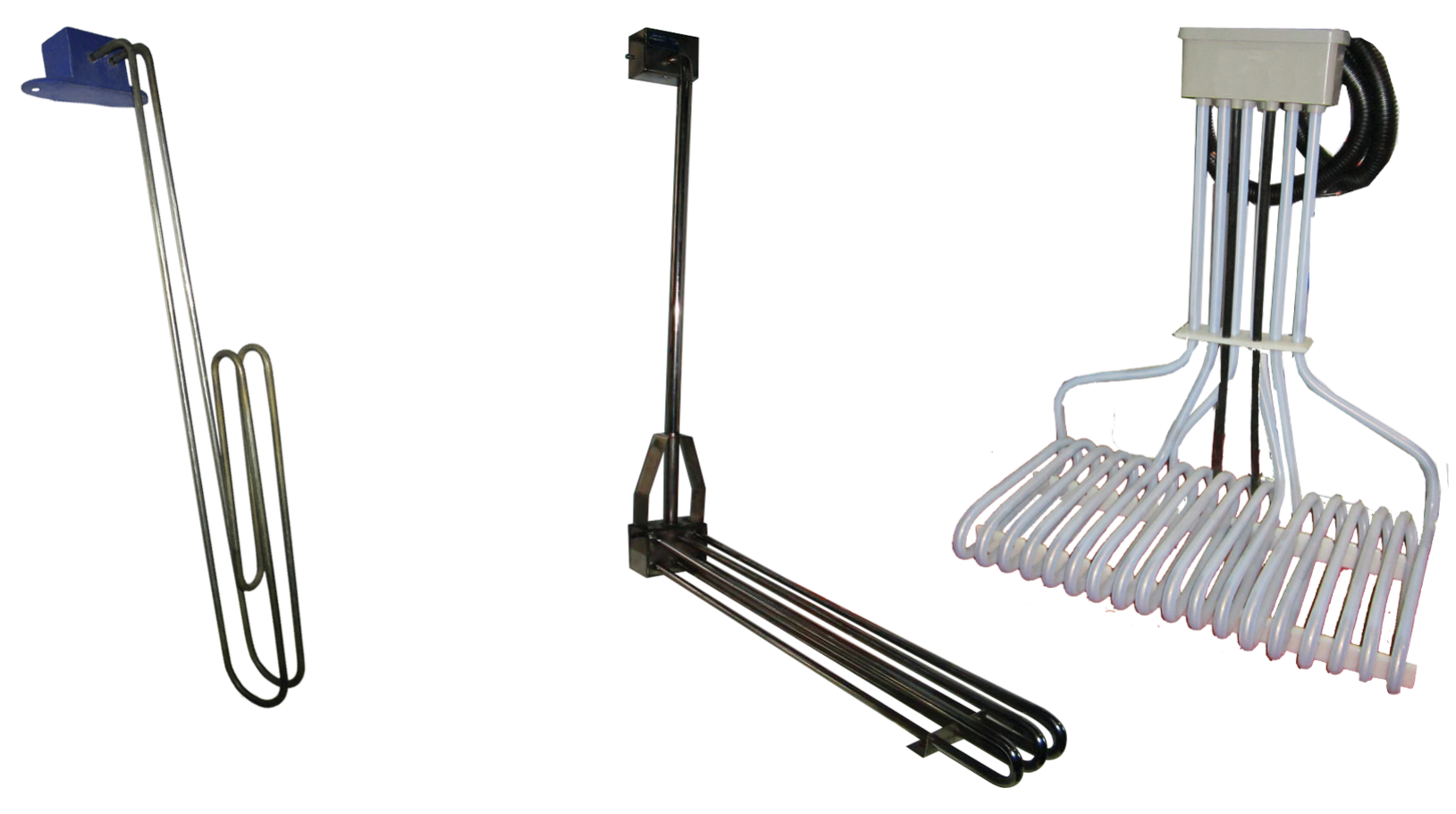

CHEMICAL IMMERSION HEATERS
Ø Fuel Oils
Ø Chemicals
Ø Process Water
Ø Hydraulic Oils
Ø Acid Solutions
Ø Deionized Water
Ø Steam & Vapors
Ø Ethylene Glycol
Ø Liquid Mixtures
Ø Water Purification
Ø Alkaline Solutions
Ø Heat Transfer Fluids
Ø Degreasing Solutions
Ø Petroleum Productsand many more...
A wide selection of Watt Densities, Power Ratings, andVoltages.
Element Sheath Materials including Steel, Copper, Stainless Steel(s), Incoloy(s), and Inconel.
Brazed, Welded, or Removable elements. CapillaryThermostats, multiple types of Thermocouples, RTDs, andhi-limit Thermostats available in a thermowell or strappedto the element sheath.
Terminal Enclosure choices include General Purpose (std.),Weather-Resistant,Explosion-Resistant, Economy andExtended Head with cooling finns for High-TemperatureApplications.
Can be supplied with Power Distribution zones forMultiple Circuits.Center core Baffles for increased velocity and staggeredbaffle plates available to increase turbulence for betterheat transfer
Tubular Immersion heaters are available in the followingdiameters. Tube dia : 8 mm, 11 mm, 14 mm, 17 mm, 19mm. Watt Density upto 60 w / Sq.in (9.3 w / Sq.cm)
Immersion heaters incorporate high quality tubularelements welded or brazed onto awide range ofmounting fittings. These mounting fittings include:
Ø Standard flanges
Ø BSP and NPT threaded flanges - 1”BSP to 3” BSP
Custom flanges, Screw plugs and other customfittings to suit the applications
